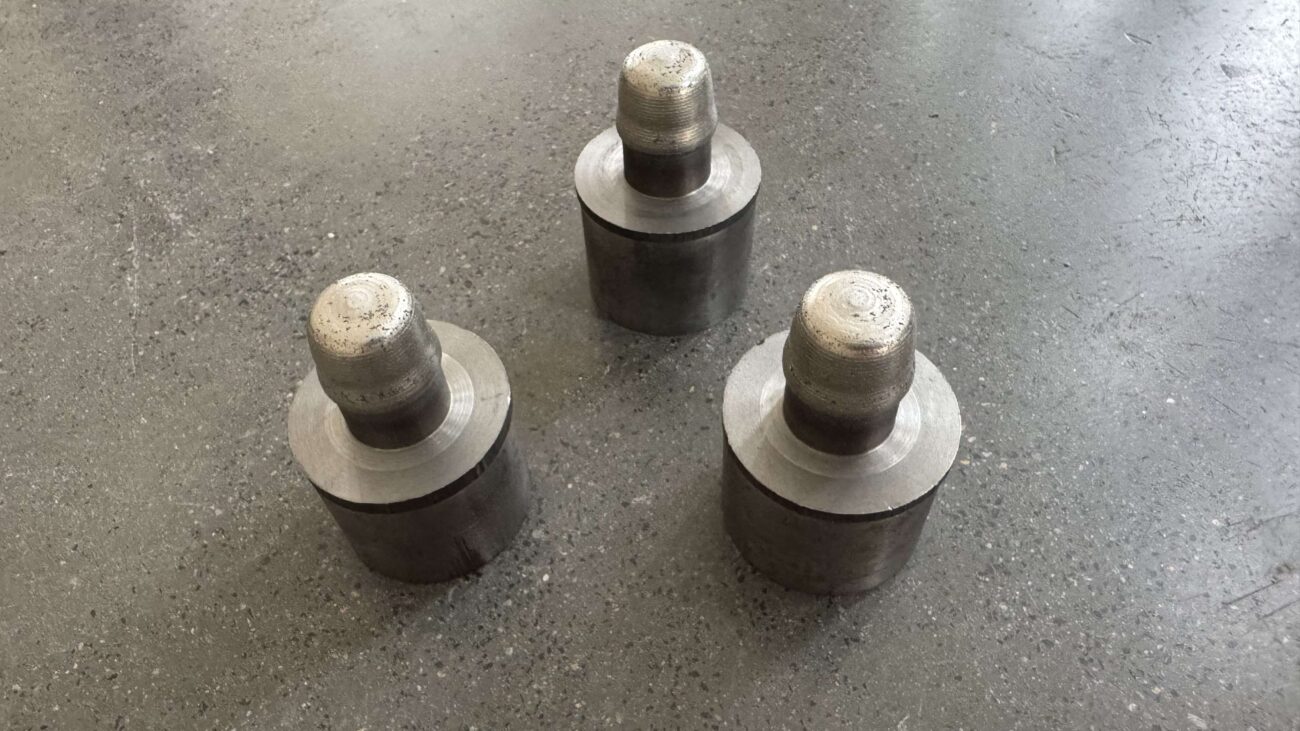

Baffles are flat or slightly contoured components that seal the top of the blank mould during the forming process. After the glass gob is loaded into the blank mould, the baffle closes over the top to contain the glass during initial forming (settle blow or counter blow). Baffles must provide a reliable seal while withstanding the thermal shock of contact with molten glass and the mechanical forces of repeated opening and closing cycles.

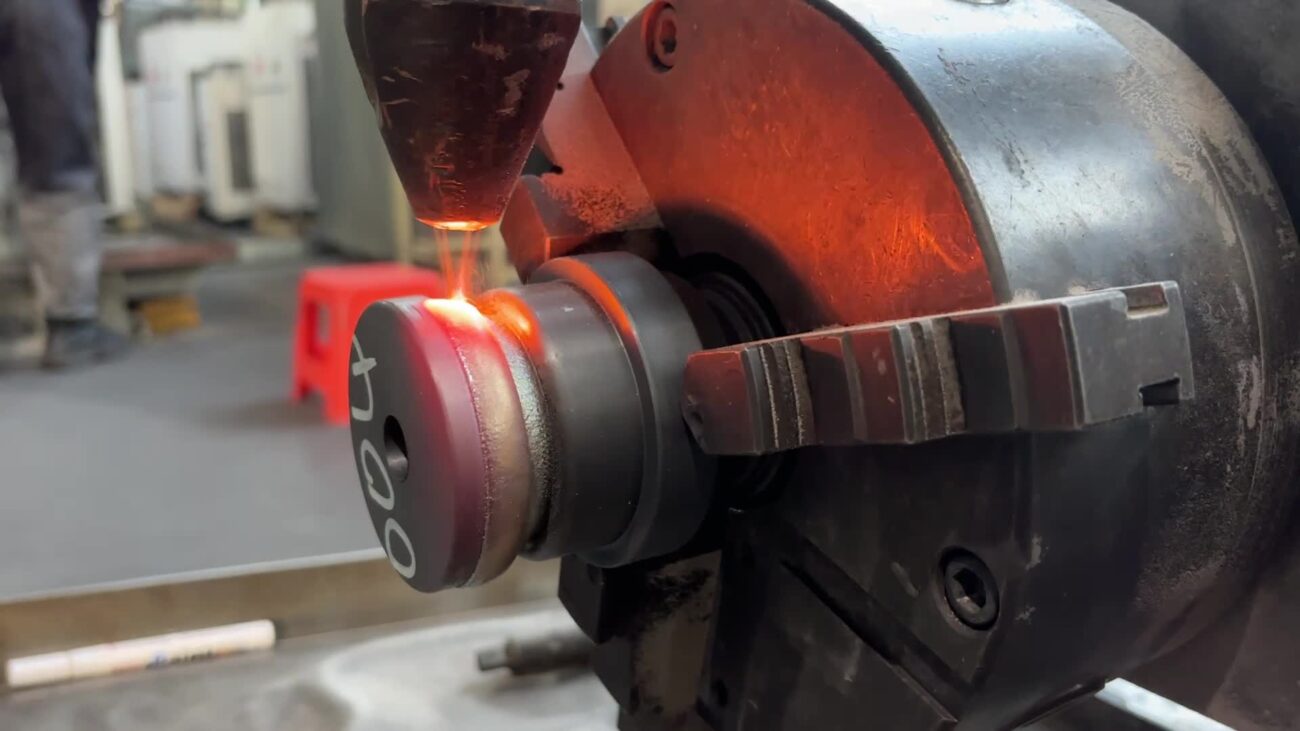

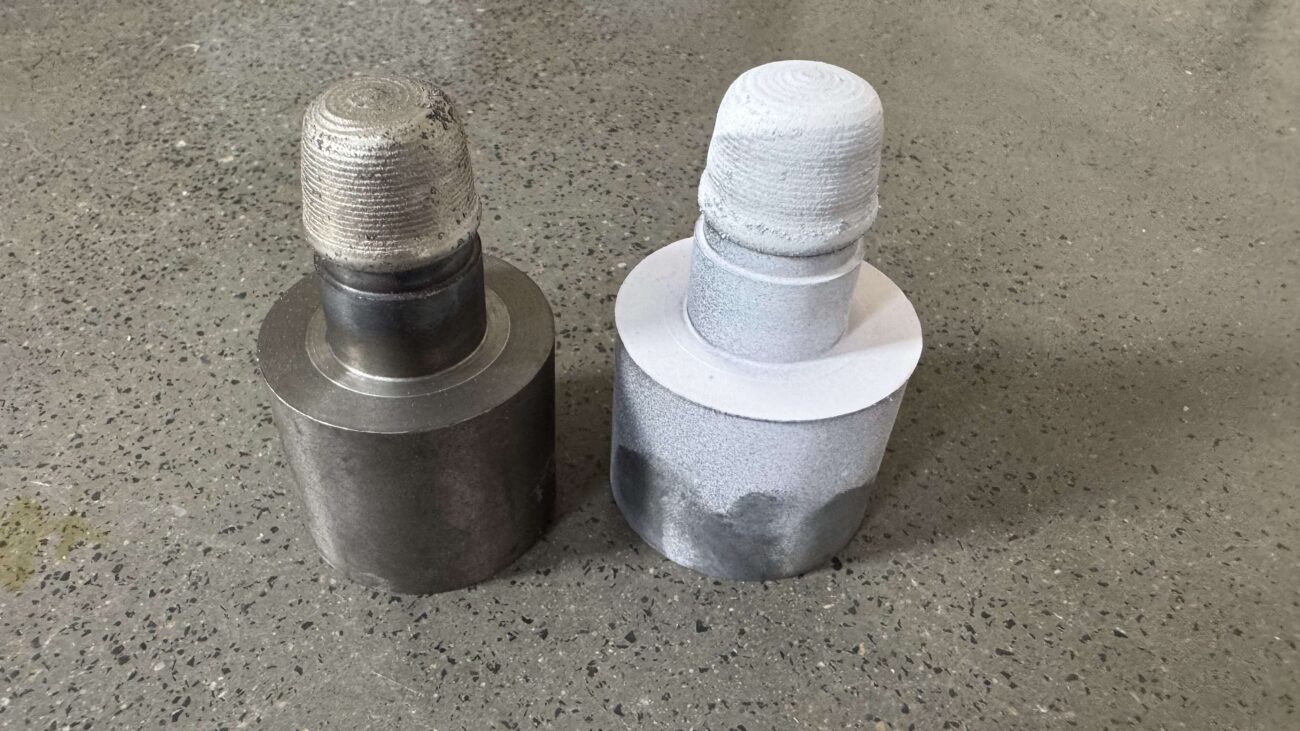

Frequent external compressive force causes wear and collapse at the baffle lock‑ring position. This eventually results in poor fitting between the baffle and the glass blank mold, leading to air leakage. Consequently, parisons suffer from baffle‑line defects and uneven wall thickness. The laser cladding process with cobalt‑based alloy powder can effectively restore lock‑ring dimensions and extend the service life of the baffle.

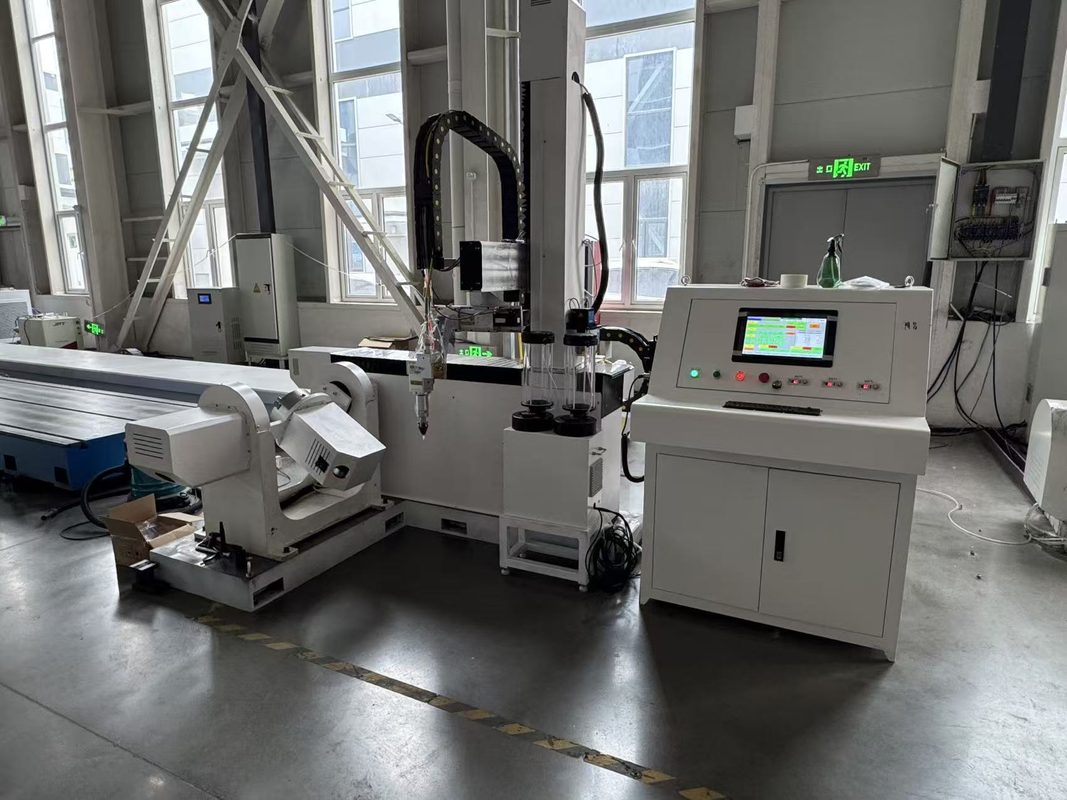

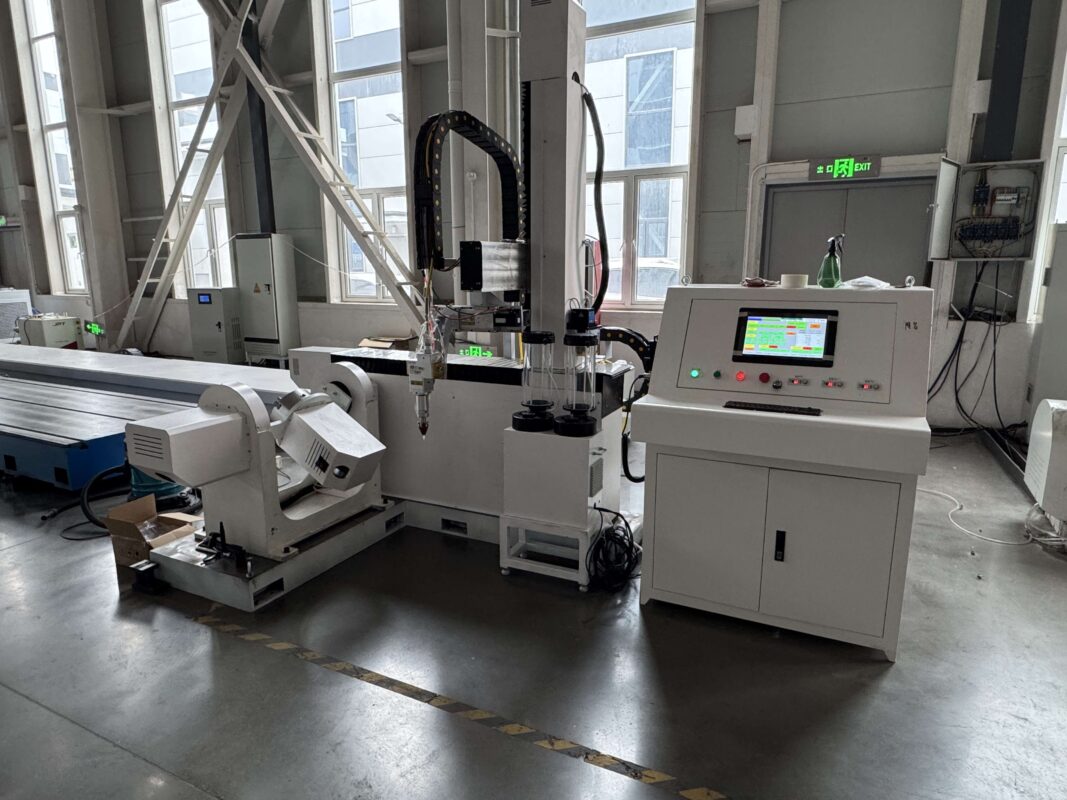

Laser cladding machine for the glass mould:
our laser cladding machine is the CNC 5 Axis based machine, it not only can perform the laser cladding onto the Baffle, but also it can perform the laser cladding for the Plunger, bottom plate, Neck ring guide, blank mould, blow mould and Neck ring. so this is the machine which can work for all the glass mould products.

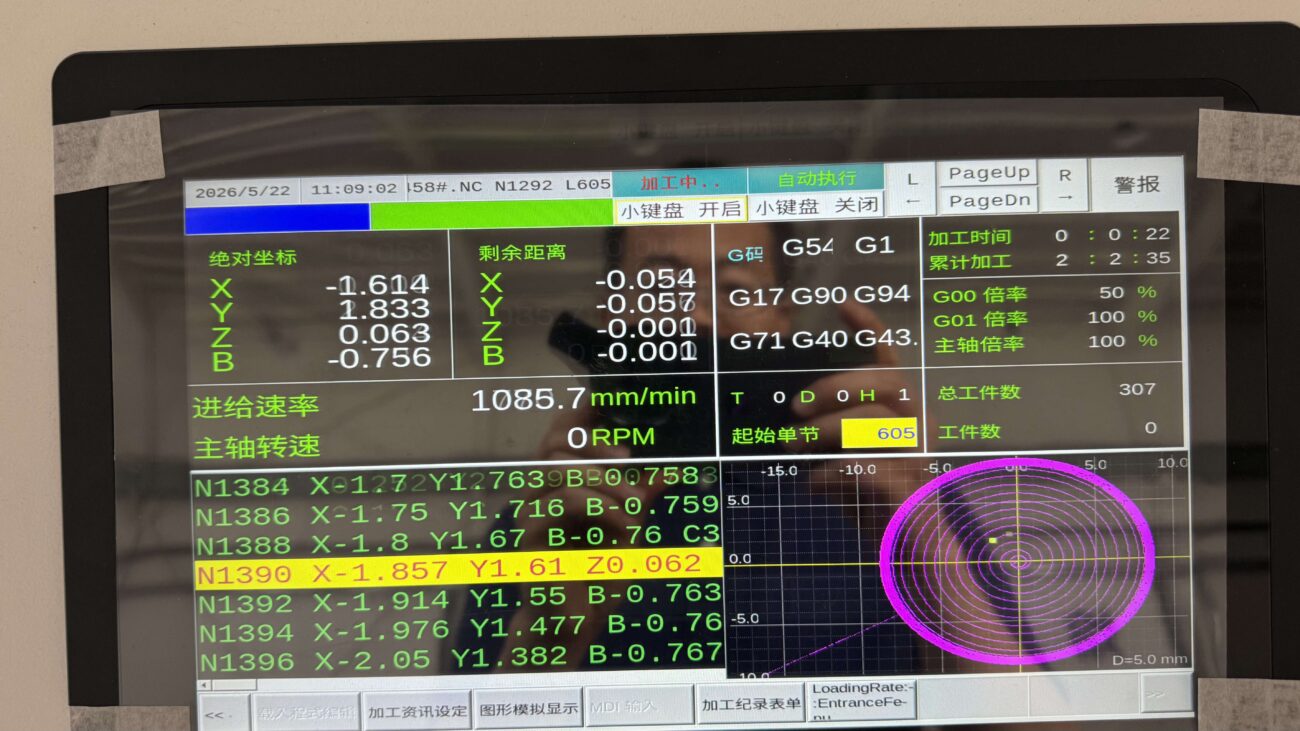

It is easy to program the laser cladding path in the CNC system.
it will just take 3-5 days for the CNC Operator to finish the trainning.
Powder that we used for this case: Cobalt based Powder
The following is the Glass mould laser cladding machine working video:
Xian Yunding Laser Technology Co., Ltd. is a professional factory in the laser cladding and hardening area in China. Our machine has been widely used in many industries such as coal mining machinery, metallurgical machinery, agricultural machinery, petroleum machinery, cutting teeth/shovel teeth, Automotive, injection molding machinery, valve industry, mold industry, power industry, bearing/bushing/shaft sleeve and repairing.
In the Chinese application market, we Yunding Laser has the highest market share. We can provide the turnkey engineering project service for your needs.
More information please visit: www.ydlasertech.com
whatsapp:+86-13851850644
Email: yundinglaser@gmail.com or John@ydlasertech.com
Yunding laser is committed to supplying high‑quality laser cladding machines for the industry.
