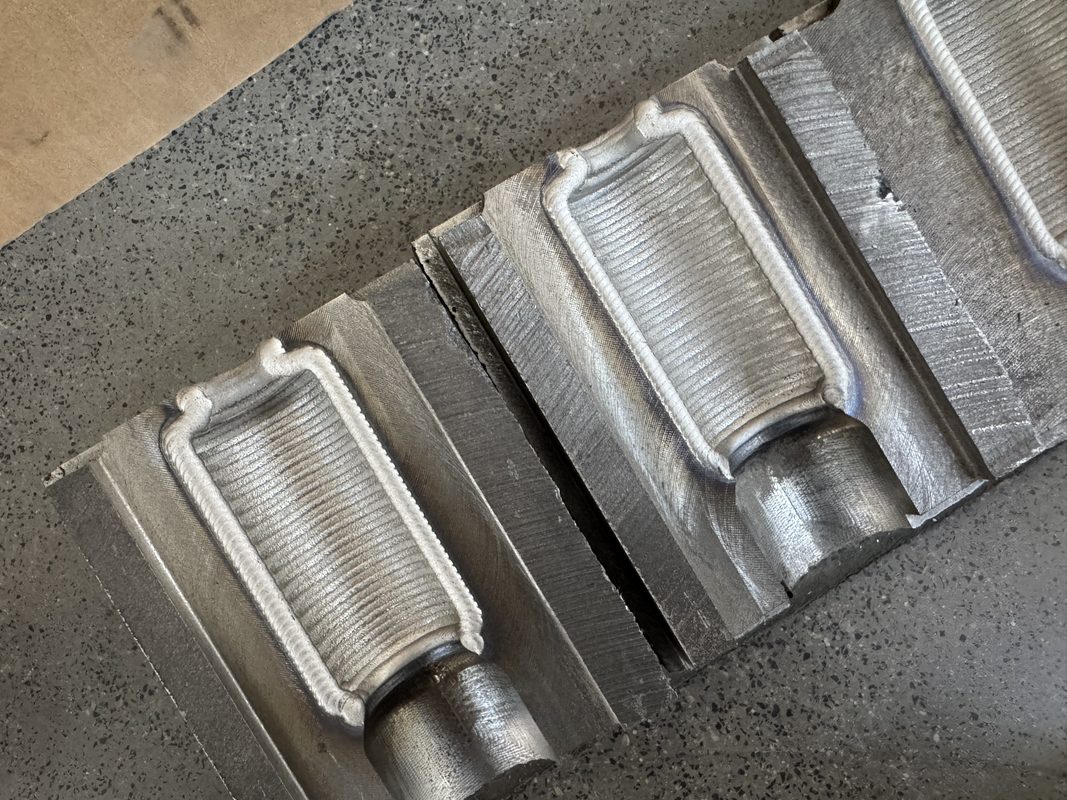

Due to strict appearance specifications for high‑end cosmetic glass bottles (<100ml), where scratches, seam marks and color deviation are unacceptable, many manufacturers apply full‑cavity laser cladding to their glass molds.
In the industry, glass bottles are graded (e.g., Grade‑1) mainly based on appearance defects, wall‑thickness uniformity and volume tolerance. Grade‑1 glass bottles impose stricter control over imperfections such as bubbles, striae and stones. This is particularly critical for high‑end cosmetics, since any visual defect may damage brand image. Full‑area laser cladding on the cavity of glass molds can effectively reduce defects and greatly improve the surface quality of glass bottles.
Full‑cavity cladding sets high requirements for equipment in terms of internal‑cavity accessibility, laser‑spot control and heat‑input management. Meanwhile, full‑cavity laser cladding places heavy demands on the programming capability of both the equipment and operators.
our Glass mold laser cladding machine:

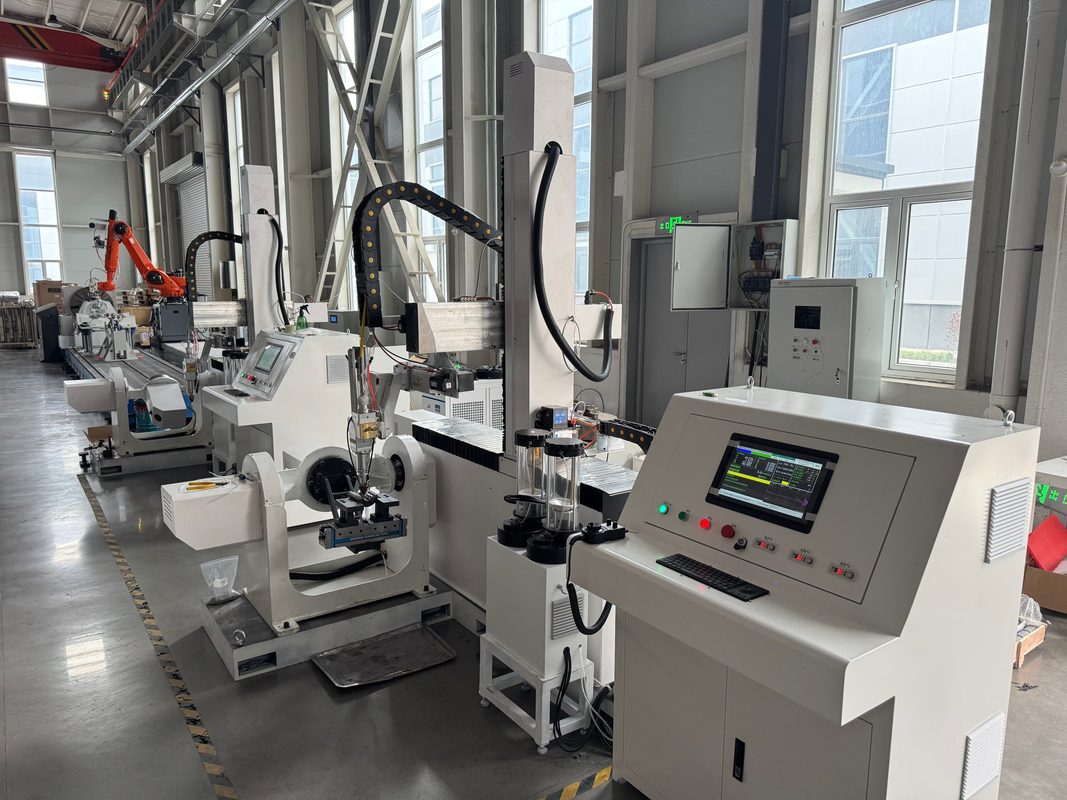

Our laser cladding machine is the CNC based machine and it is specially designed for the Glass Mould Manufacturing Industry. The entire machine has the characteristics of high power, high anti reflection, high precision, compact overall structure, high stability and flexible operation. This Laser Cladding Machine consists of one set of 6000W Fiber Laser Source (Customized version), one set of the YDGD-03-QBH reflective laser cladding head with coaxial powder feeding nozzle, One set of the high-precision powder feeder, one set of the 6000W water cooler (for laser source), one set of the 60KVA power stabilizer, one set of the CNC 5-Axial machine, one set of the fixture and also one set of the CNC control system.
This machine can perform the laser cladding for the blank mold, blow mold, Neck ring, Neck ring guide, plunger, baffle, bottom plate and so on.
Machines based on CNC systems have significant technical advantages over robot‑based machines:
- Flexible programming options. Manual programming is supported, and mainstream CAD/CAM software (such as UG, Mastercam, Powermill, etc.) can also be used for assisted programming. CAD/CAM‑assisted programming enables fast completion of laser cladding tasks for complex molds.
2. With CNC‑based machines, it is easy for enterprises to source qualified operators, who can become proficient in operation within a very short period.
Video about this glass mold laser cladding machine:
For more information about our laser cladding machine please contact us.
We can provide the turn-key engineering service for the glass mould laser cladding machine
Xian Yunding Laser Technology Co., Ltd. is a professional factory in the laser cladding and hardening area in China. Our machine has been widely used in many industries such as coal mining machinery, metallurgical machinery, agricultural machinery, petroleum machinery, cutting teeth/shovel teeth, Automotive, injection molding machinery, valve industry, mold industry, power industry, bearing/bushing/shaft sleeve and repairing.
In the Chinese application market, we Yunding Laser has the highest market share. We can provide the turnkey engineering project service for your needs.
