Screw Laser Cladding Machine

This is a dedicated machine for screw laser cladding

For plastic extrusion machines and injection molding machines, the screw shafts, extruder barrels and injection barrels are subject to wear and corrosion. Laser cladding technology can be applied to form a wear-resistant and corrosion-resistant alloy coating on the surface of screws and barrels, which greatly extends their service life. We have supplied numerous sets of laser cladding equipment for the repair and surface strengthening of screws and barrels in this industry, including many well-known domestic component manufacturers

Performance Features

High Adaptability

High Adaptability

Can meet the cladding/additive processing of flat and irregular workpieces with weight ≤2T and length ≤5m

Efficient Nozzle

Efficient Nozzle

High-power needle-type powder feeding and annular powder feeding water-cooled nozzles meet the needs of high-power laser processing

Intelligent Control

Intelligent Control

Centralized control, powerful functions, easy operation; supports 2D/3D graphics import, no programming required

High Stability

High Stability

Can produce continuously and stably for 24 hours

Modular Design

Modular Design

Rich configuration, equipped with multi-brand lasers and cladding heads to meet the processing needs of different types of workpieces

Good molding quality

Good molding quality

Advanced spot homogenization technology ensures the consistency of the melt pool, achieving a high-quality cladding layer with Ra≤6.3um.

Technical Parameters

Structure:

Casting/Welding

Laser:

3-12KW

Workpiece  Diameter:

≤1200mm

Workpiece Length:

≤12000mm

Load:

≤10t

Rotational Speed:

0-100r/min

Cladding Thickness:

≤2.5mm (Single Layer)

Cladding Efficiency:

0.6-1.6m²/h

Function:

Cladding/Quenching

Cladding Head:

Coaxial Annular/Multipoint Needle Type, etc.

Operating System:

PLC/CNC/No programming

Optional Functions:

CCD/Adaptive Height Following/Wire (Cold Wire/Hot Wire) Components, etc.

Screw Laser Cladding Machine Video

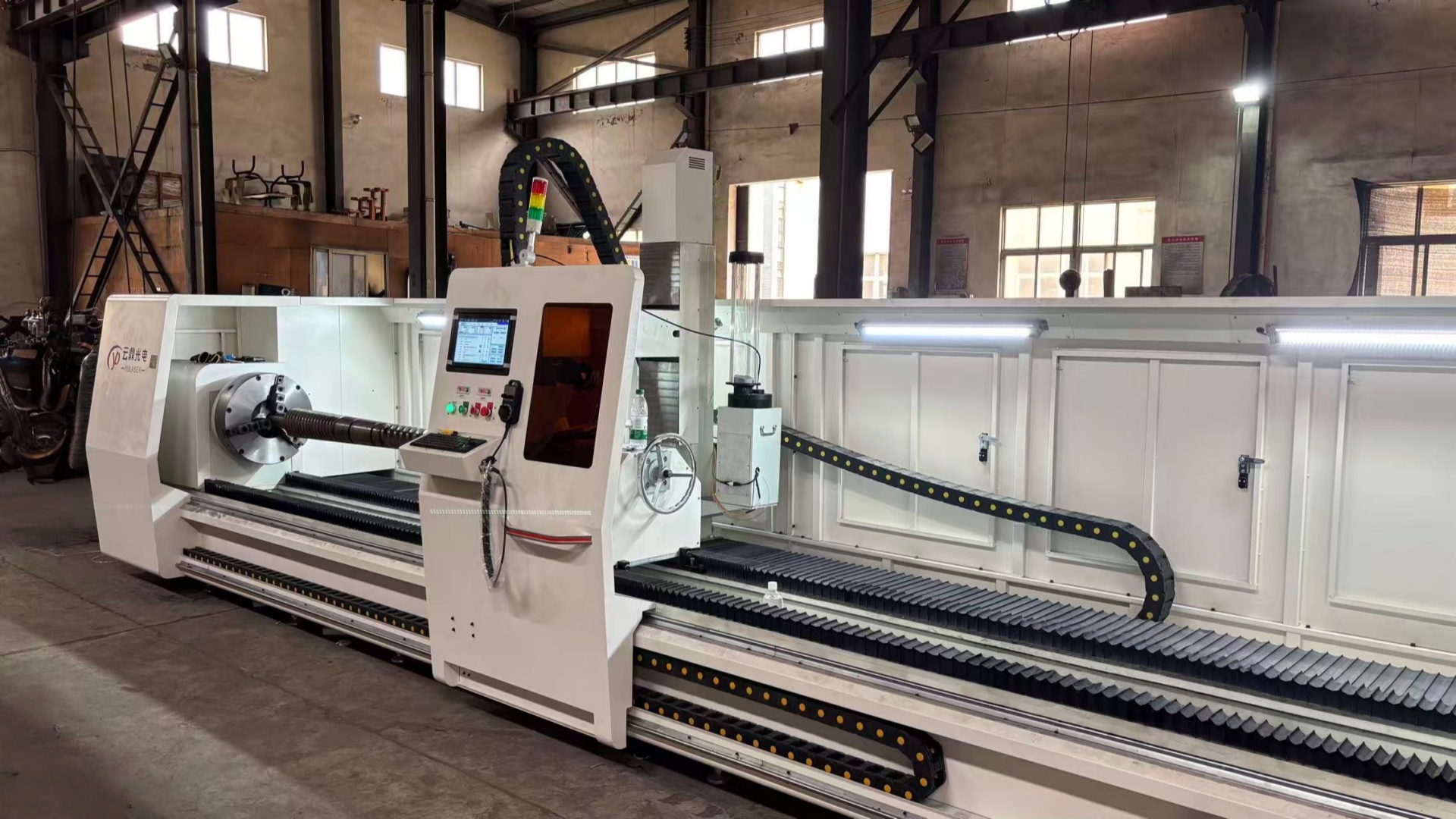

Screw Laser Cladding Machine 1

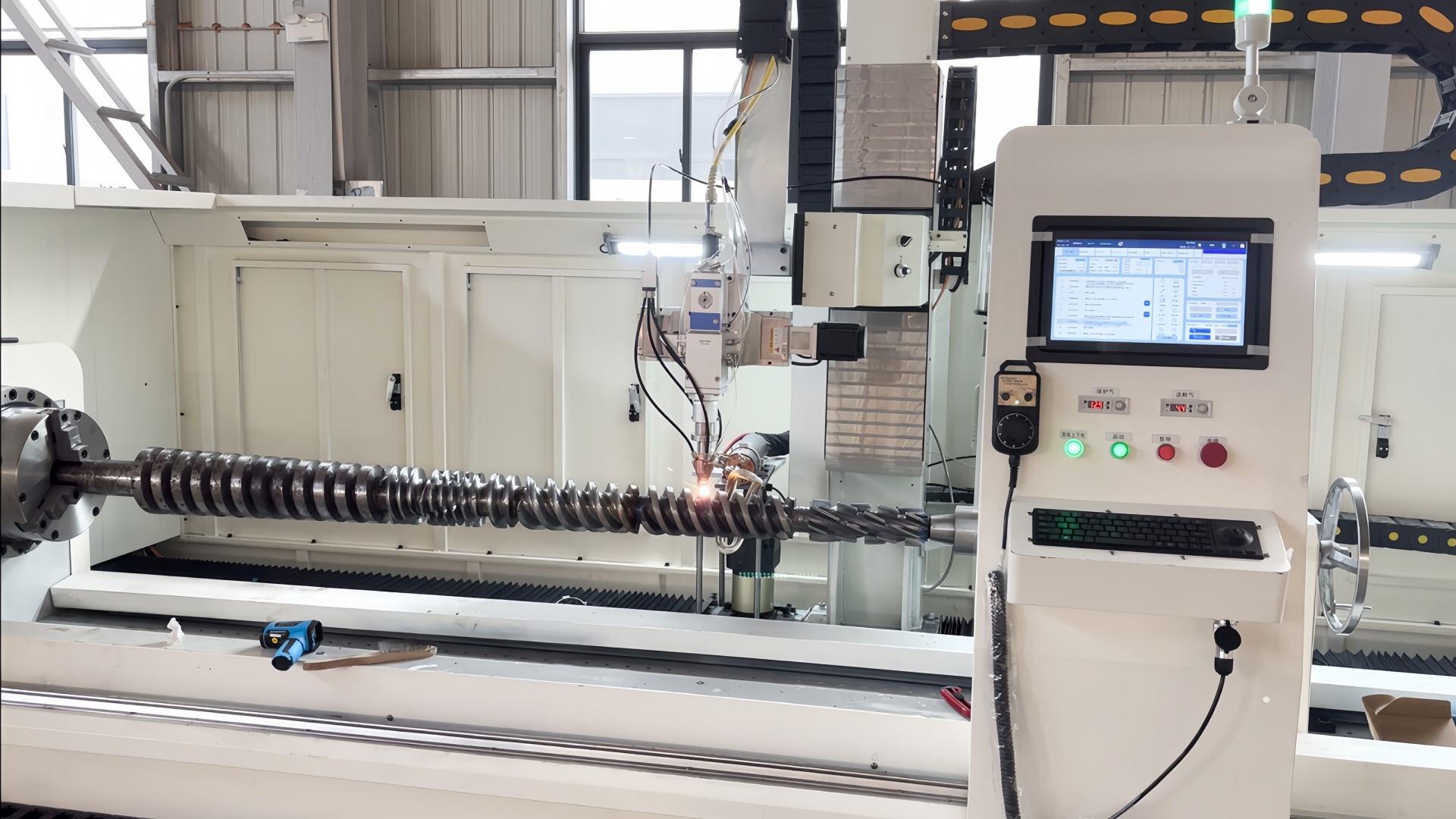

Screw Laser Cladding Machine 2

Screw Laser Cladding Machine 3
