4-Axis Based Enclosed Laser Cladding Machine
Fully enclosed laser cladding equipment can significantly improve the working environment for operators, isolate human body from hazards caused by laser radiation and fume, enhance corporate image, and has been widely applied to products such as hydraulic cylinders, conveyor rollers, boilers, etc.
Performance Features
High Adaptability
ID and OD Laser Cladding/additive processing for workpieces with length ≤ 3m
Efficient Nozzle
High-power needle-type powder feeding and annular powder feeding water-cooled nozzles meet the needs of high-power laser processing
Intelligent Control
Centralized control, powerful functions, easy operation; supports 2D/3D graphics import, no programming required
High Stability
Single unit capacity can reach 10 ㎡/day, capable of continuous stable production for 24 hours
Modular Design
Rich configuration, equipped with multi-brand lasers and cladding heads to meet the processing needs of different types of workpieces
Good molding quality
Advanced spot homogenization technology ensures the consistency of the melt pool, achieving a high-quality cladding layer with Ra≤6.3um.
Technical Parameters
| Structure:Casting/Welding | Laser:3-12KW | Workpiece Inner Diameter:≥45mm | Workpiece Length:≤3000mm |
| Load:≤5t | Rotational Speed:0-100r/min | Cladding Thickness:≤2.5mm (Single Layer) | Cladding Efficiency:0.6-1.6m²/h |
| Function:Cladding/Quenching | Cladding Head:Coaxial Annular/Multipoint Needle Type, etc. | Operating System:PLC/CNC/Intelligent System | Optional Functions:CCD/Adaptive Height Following/Wire (Cold Wire/Hot Wire) Components, etc. |
4-Axis Based Enclosed Laser Cladding Machine Video

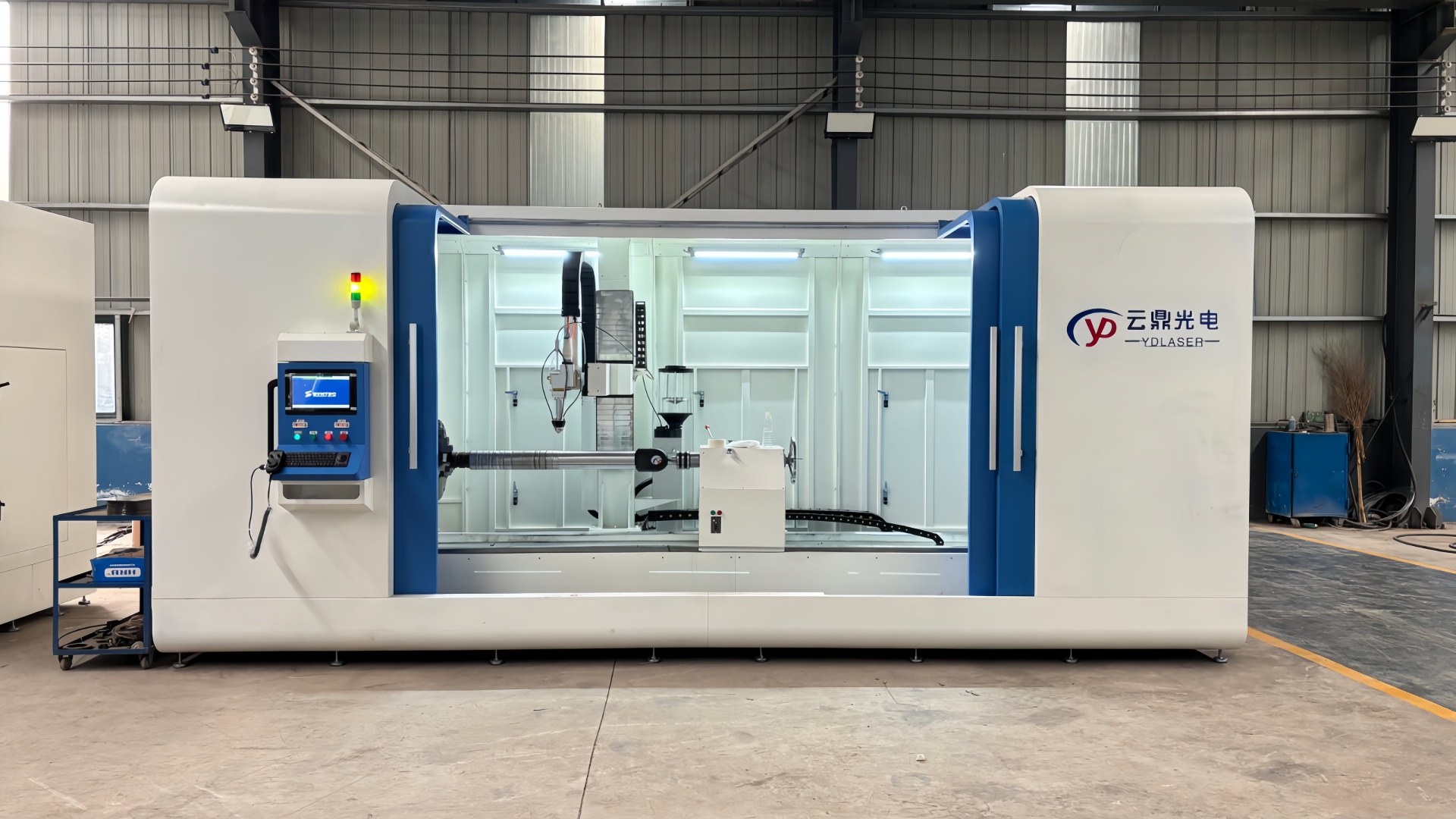

Enclosed Cabinet Laser Cladding Machine 1

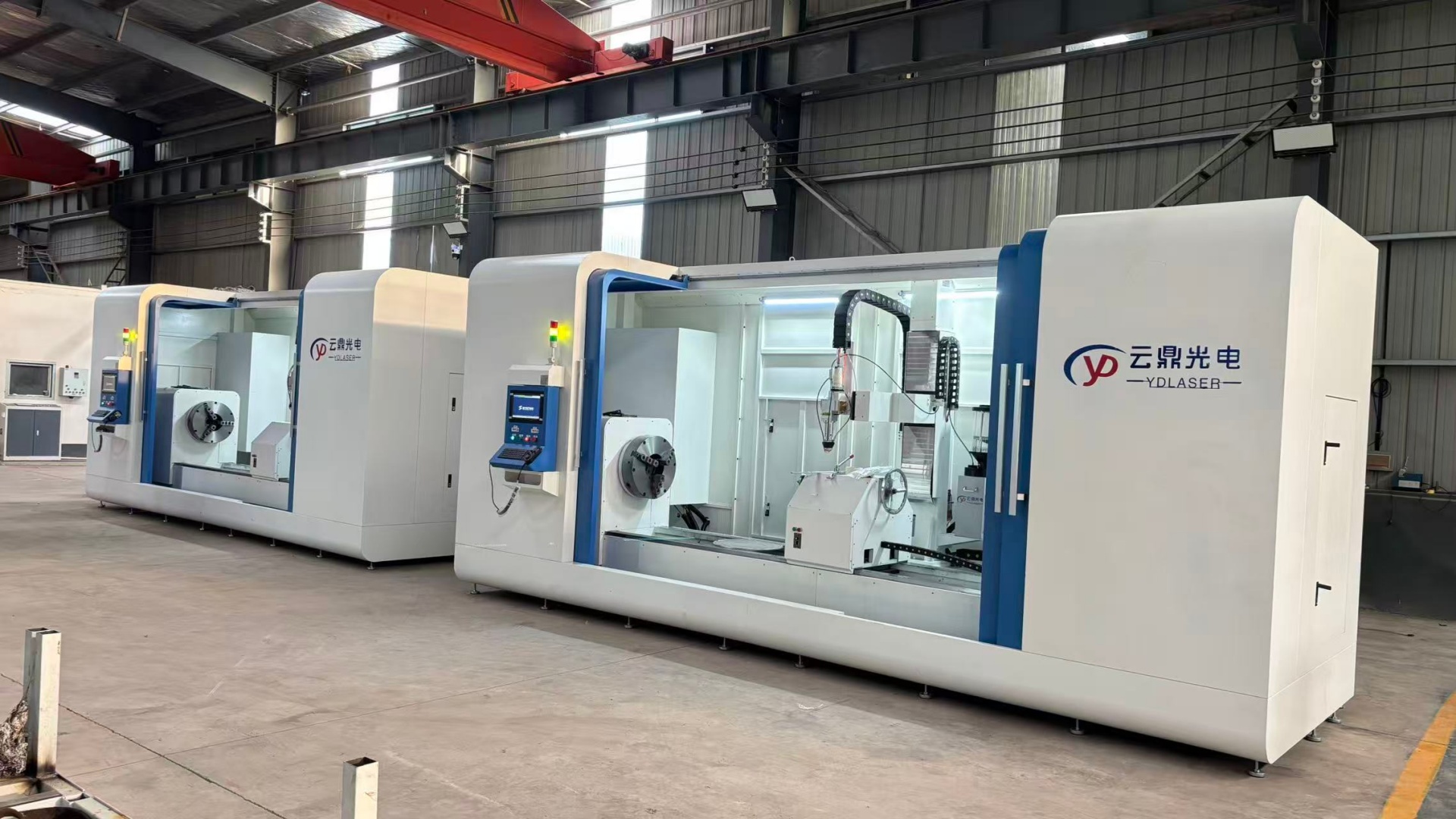

Enclosed Cabinet Laser Cladding Machine 2

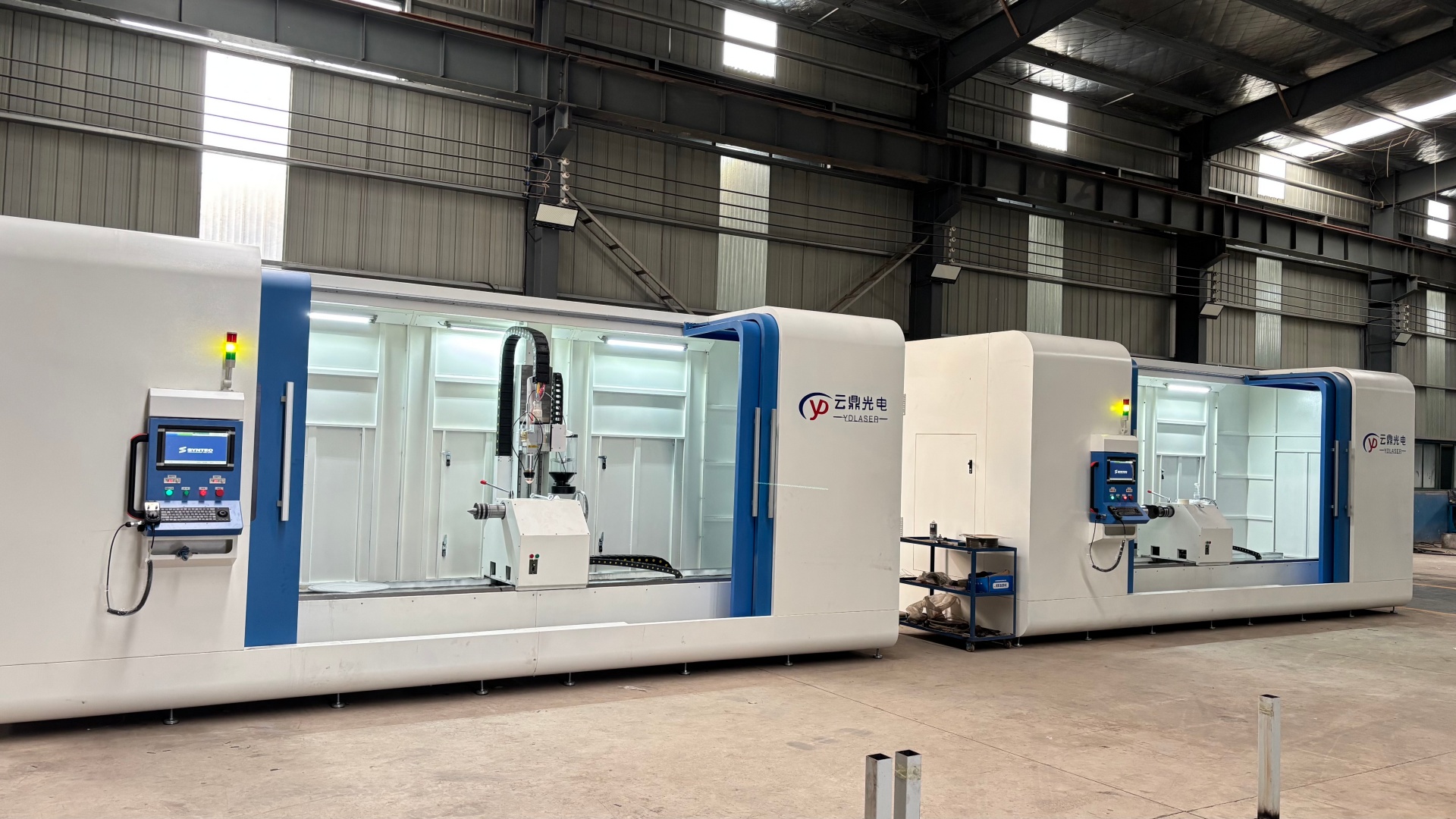

Enclosed Cabinet Laser Cladding Machine 3
