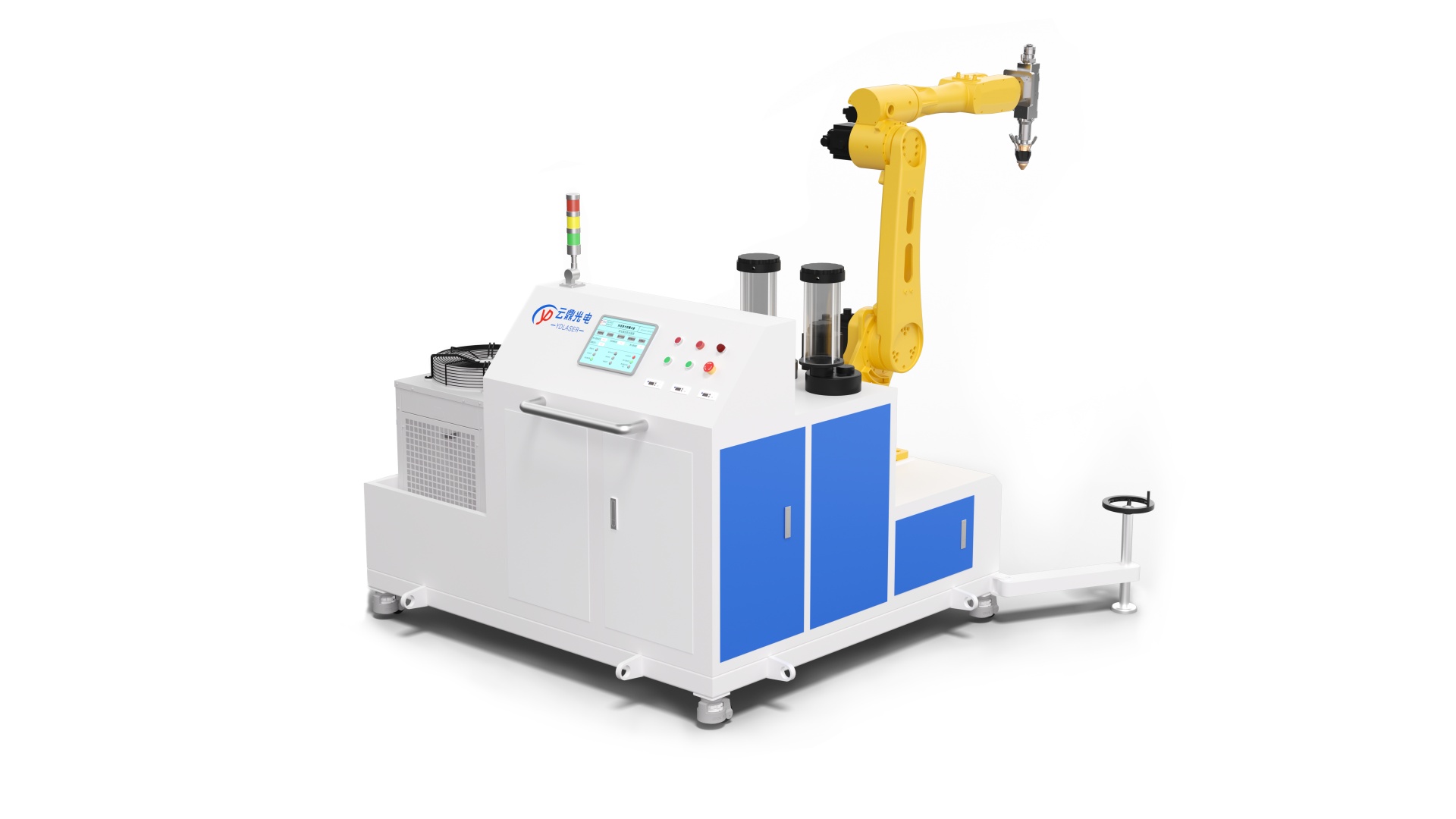

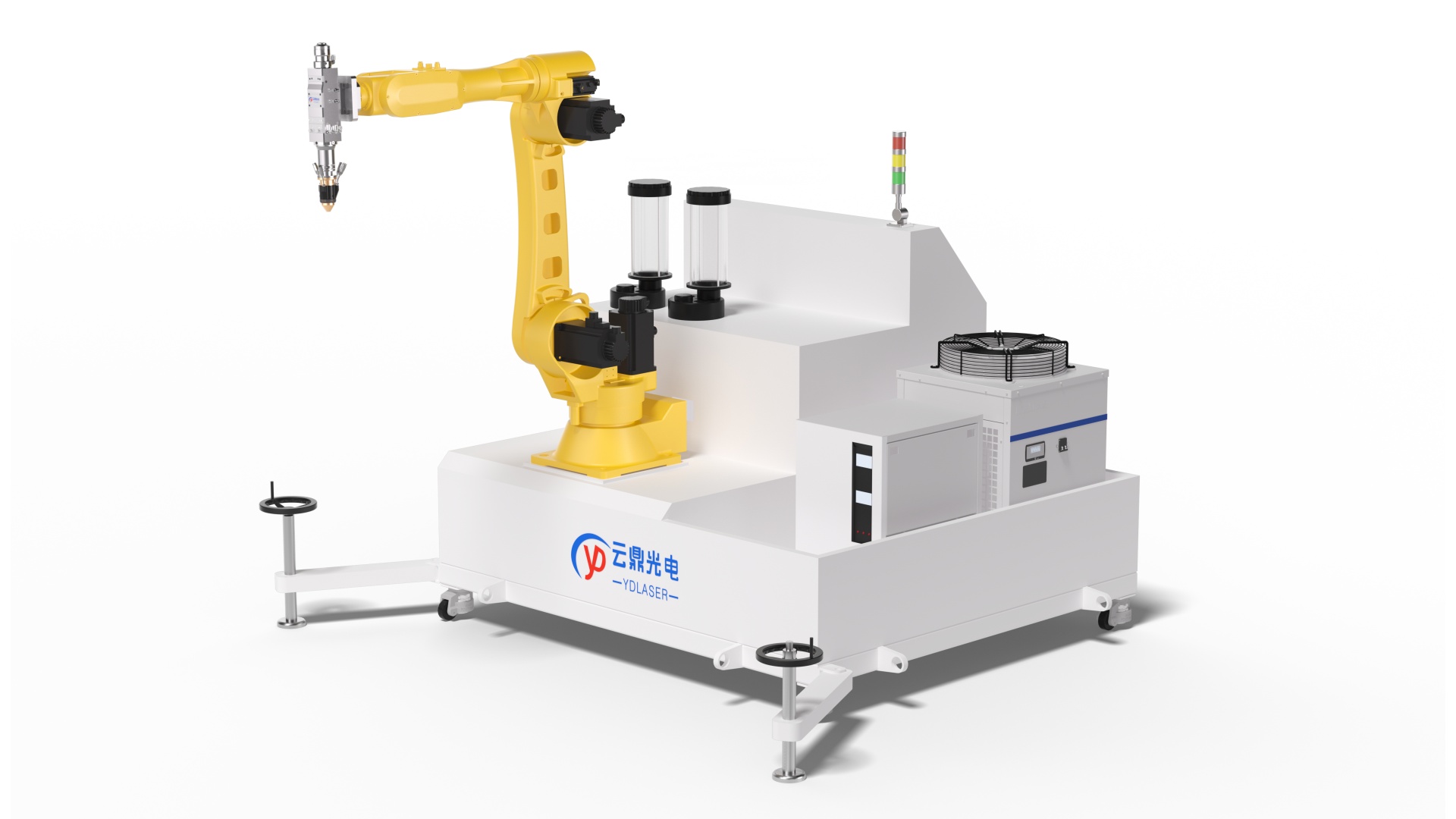

Mobile Robot Based Laser Cladding Machine
Mobile robotic laser cladding equipment has unparalleled advantages for on-site cladding processing of workpieces that cannot be disassembled or transported; this equipment can achieve cladding processing of various types and large-size workpieces in the user's workshop by being equipped with different types of motion systems such as rotary tables and positioners. The mobile laser cladding equipment mainly includes a mobile platform, laser, laser cladding heads with different structures, six-axis robotic arm, positioner, water cooler, voltage stabilizer, powder feeder, and the software and hardware required for integrated control, enabling laser cladding and additive manufacturing on the surfaces of various workpieces.
Performance Features

High integration level
Facilitates overall movement, hoisting, and transportation, enabling rapid cladding operations.

High Adaptability
Can meet the cladding/additive processing of shaft-type, flat plate, and special-shaped workpieces with weight ≤30t and length ≤30m

Intelligent Control
Centralized control, powerful functions, easy operation; supports 2D/3D graphics import, no programming required

High Stability
Single unit capacity can reach 10 ㎡/day, capable of continuous stable production for 24 hours

Modular Design
Rich configuration, equipped with multi-brand lasers and cladding heads to meet the processing needs of different types of workpieces

Good molding quality
Advanced spot homogenization technology ensures the consistency of the melt pool, achieving a high-quality cladding layer with Ra≤6.3um.
Technical Parameters


Structure: Welding | Laser: 3-6KW | Motion Mechanism: Six-axis Robot + Mobile Platform | Cladding Thickness: ≤2.5mm (Single Layer) |
Cladding Efficiency: 0.3-1.6m²/h | Function: Laser Cladding/Quenching | Cladding Head: Coaxial Annular nozzle/Coaxial 4-channel nozzle or inner diameter nozzle | Operating System: PLC/Online Teaching/Intelligent system |
Optional Functions: CCD Molten Pool Monitoring, Molten Pool Temperature Closed-loop, Wire (Cold Wire/Hot Wire) Components | |||
Mobile Robot Based Laser Cladding Machine Video
Mobile Laser Cladding Machine 1
Mobile Laser Cladding Machine 2
Mobile Laser Cladding Machine 3
