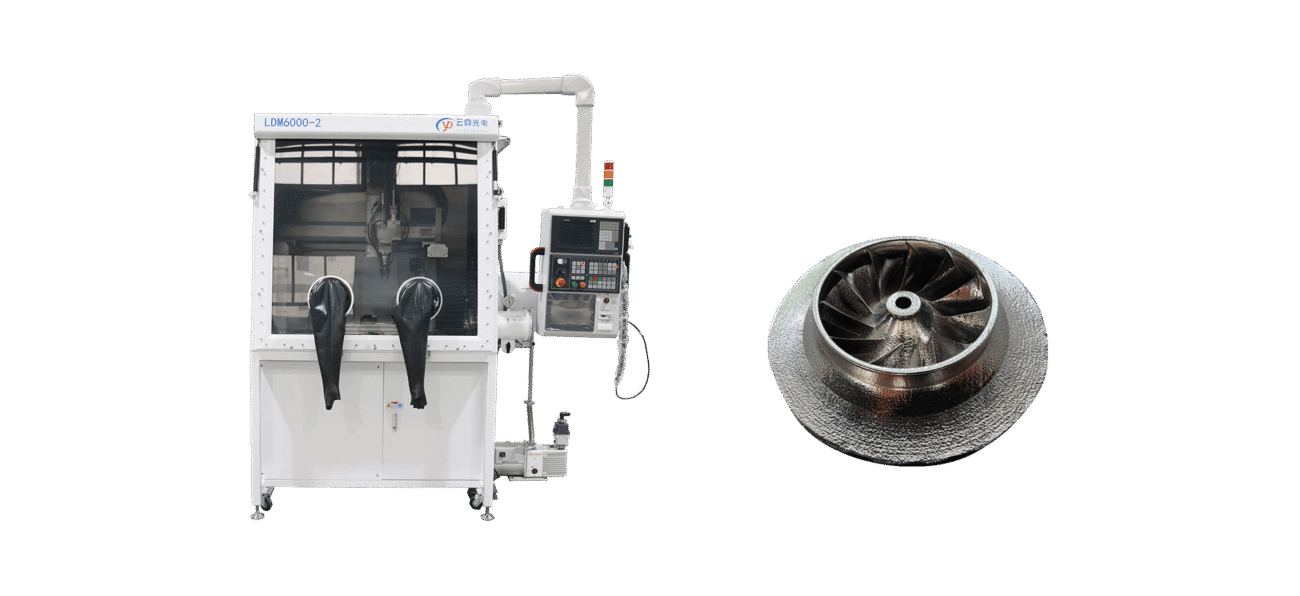

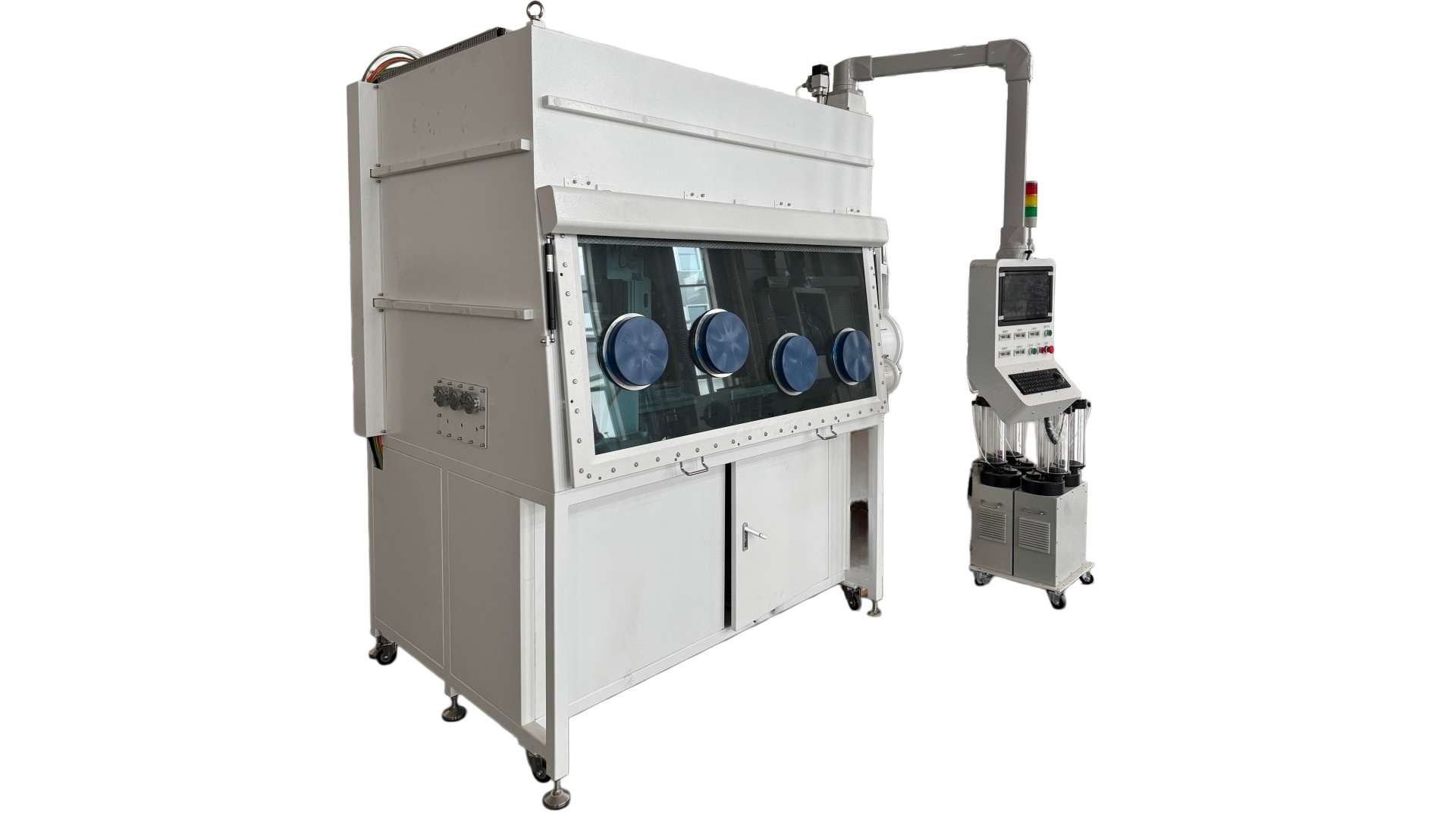

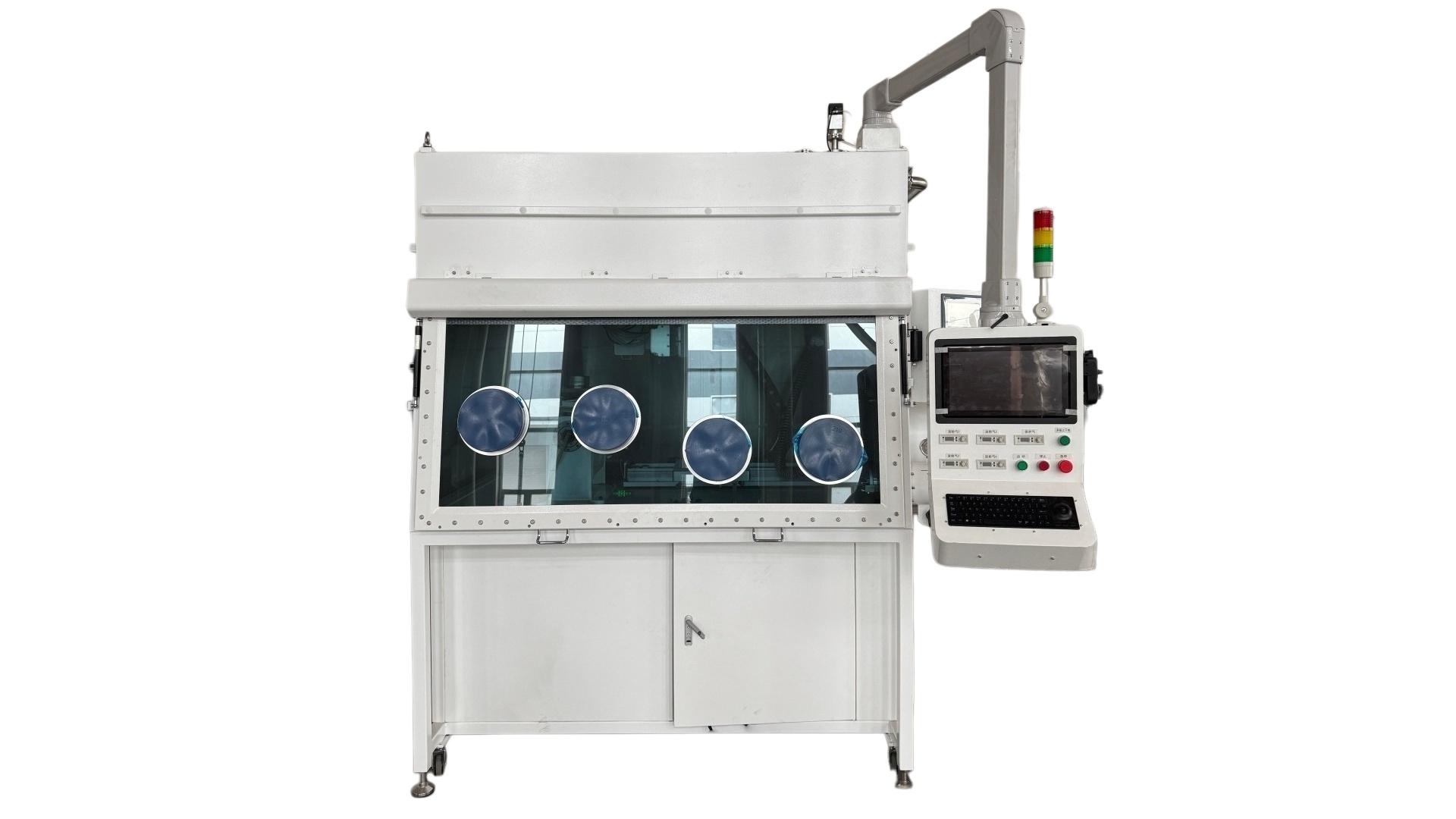

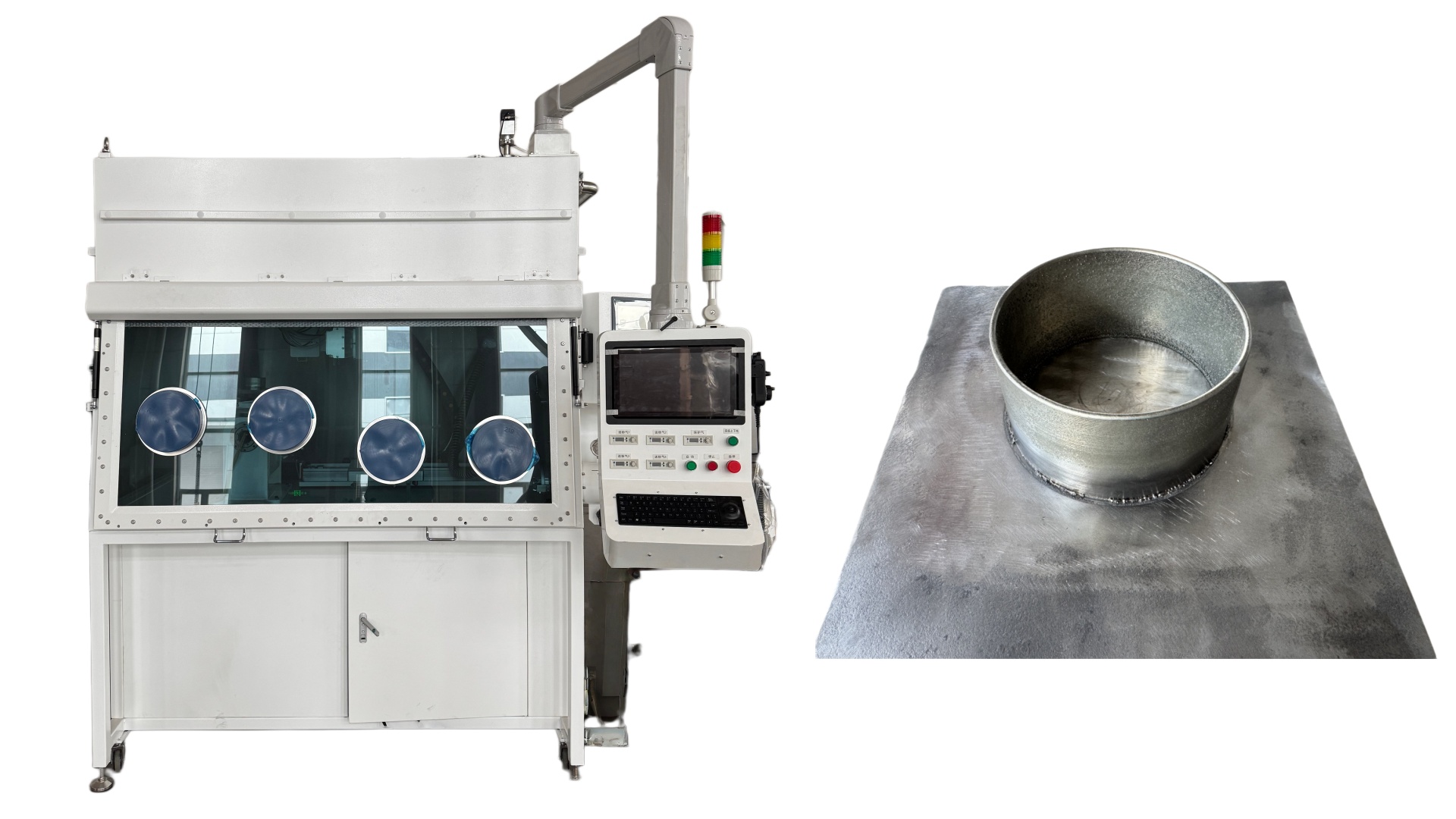

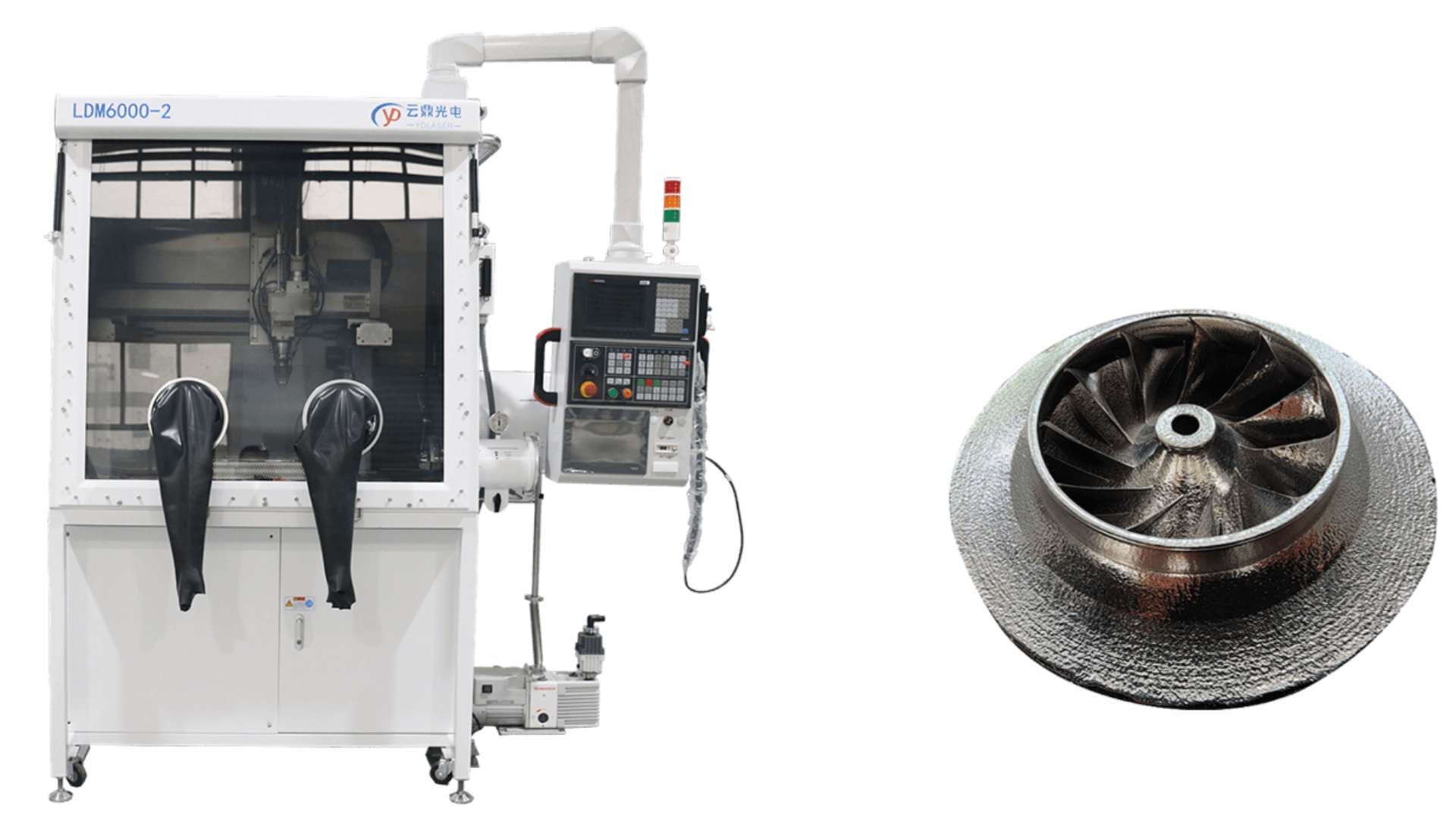

3-axis/4-axis/Robot Based Laser Additive Manufacturing Machine
The device workspace is a sealed chamber filled with capable of creating a high-purity working environment with water and oxygen controlled below 10 ppm. It enables additive manufacturing of highly reactive metals such as copper, aluminum, magnesium, titanium, and zirconium, mainly applied in processing, scientific research, and new material development.
Performance Features
Powerful functionality
Three-axis cantilever + two-axis positioning machine structure achieves five-axis linkage or with 6-axis Robot inside
Efficient Nozzle
High-power needle-type powder feeding and annular powder feeding water-cooled nozzles meet the needs of additive fine processing
Intelligent Control
Centralized control, supports 2D/3D graphics import, supports slicing and path planning
Altitude Sickness Prevention
A certain metal material has a relatively high reflectivity to laser; high reflectivity is undesirable, so it is called high reflectance resistance.
Inert Gas Protection
Inert gas fills a sealed space, providing protection for welding.
Optional Features
CCD molten pool monitoring, molten pool temperature closed-loop, electromagnetic stirring, ultrasonic vibration, etc.
Technical Parameters
Structure: Welding | Laser: 2-6KW | Three-axis Travel: X-500mm, Y-500mm, Z-500mm (can be customized) | Three-axis Positioning Accuracy: ≤0.03mm |
Rotary Table Diameter of Positioner: 200-300mm | Positioner Load: 100-200kg | Water and Oxygen Content: ≤10ppm | Transition Chamber Size: φ360mm×600mm |
Circulating Purification Control System: Circulating Purification System + Regeneration System + Dust Removal System + Vacuum System |
Laser Additive Manufacturing Machine Video
Atomsphere Chamber Laser Cladding Machine
