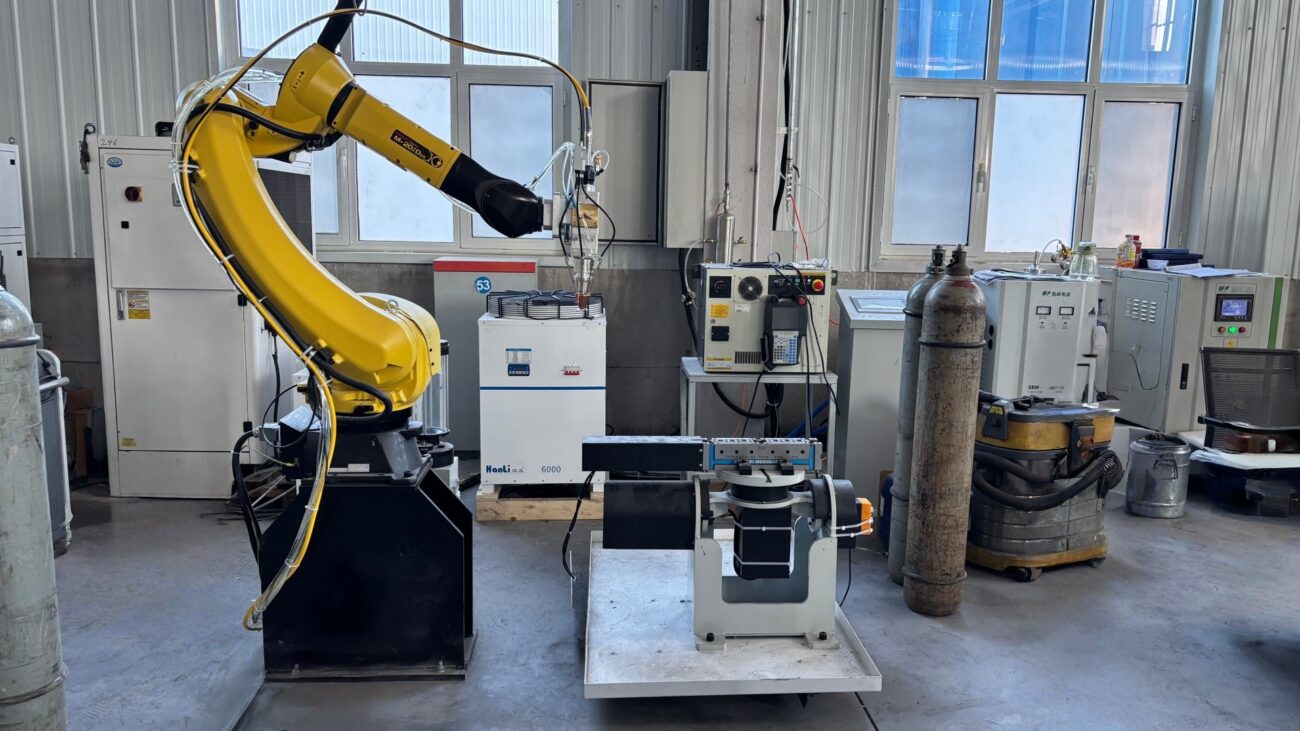

Standard Robot Based Laser Cladding Machine
With the positioners, travel mechanisms, the application of 2D/3D cameras, intelligent programming, digital twins, and multi-robot collaboration, the Robot based laser cladding machine has an extremely high level of automation and exceptional process flexibility, making it highly suitable for workpieces with complex cladding paths.
Performance Features
High Adaptability
Can meet the cladding/additive processing of shaft-type, flat plate, and special-shaped
Efficient Nozzle
High-power needle-type powder feeding and annular powder feeding water-cooled nozzles meet the needs of high-power laser processing
Intelligent Control
Centralized control, powerful functions, easy operation; supports 2D/3D graphics import,
High Stability
Single unit capacity can reach 10 ㎡/day, capable of continuous stable production for 24 hours
Modular Design
Rich configuration, equipped with multi-brand lasers and cladding heads to meet the processing needs of different types of workpieces
Good molding quality
Advanced spot homogenization technology ensures the consistency of the melt pool, achieving a high-quality cladding layer with Ra≤6.3um.
Technical Parameters
Structure: / | Laser: 3-12KW | Motion Mechanism: Six-axis Robot + Positioner+ others | Cladding Thickness: ≤2.5mm (Single Layer) |
Cladding Efficiency: 0.3-1.6m²/h | Function: Cladding/Quenching | Cladding Head: Coaxial Annular/Multipoint Needle/Internal Hole, etc. | Operating System: PLC/Online Teaching/intelligent programming |
Optional Functions: CCD Molten Pool Monitoring, Molten Pool Temperature Closed-loop, Wire (Cold Wire/Hot Wire) Components | |||
Standard Robot Based Laser Cladding Machine Video
Robot Based Laser Cladding Machine 1
Robot Based Laser Cladding Machine 2
Robot Based Laser Cladding Machine 3
